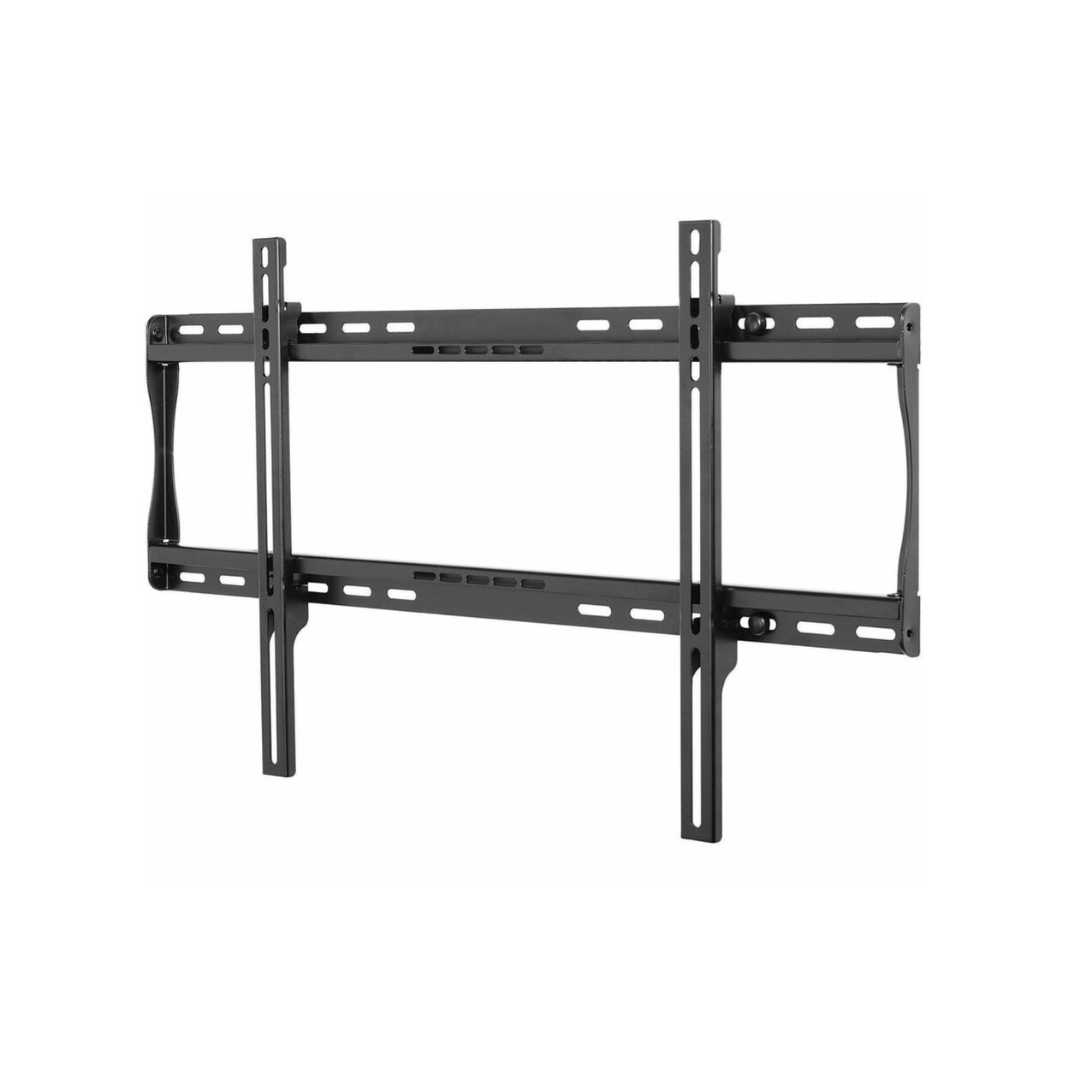

Peerless-AV SmartMount SF660P Universal Flat Wall Mount for 39" to 80" Displays
The SmartMount™ Universal Flat Wall Mount series offers the most versatile installation features and mounting options. Horizontal and vertical adjustment abilities allow for post installation levelling and side-to-side positioning, making it easier than ever to find the perfect TV position. The SF66(P) models' low-profile design offers the sleek, aesthetically pleasing look to fit into any décor. Security screws provided in the SF66 models deter tampering and theft. The open wall plate design offers total wall access, increasing the electrical and cable management options. The display can now simply be installed by a single person with the Hook-and-Hang™ system. The Easy-Glide™ adaptors hook onto the wall plate for an overall quick, simple, and secure installation.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Product Features
- Universal mount fits displays with mounting patterns up to 824 x 405mm(32.44" W x 15.95" H) and accommodates up to 800 x 400mm VESA patterns

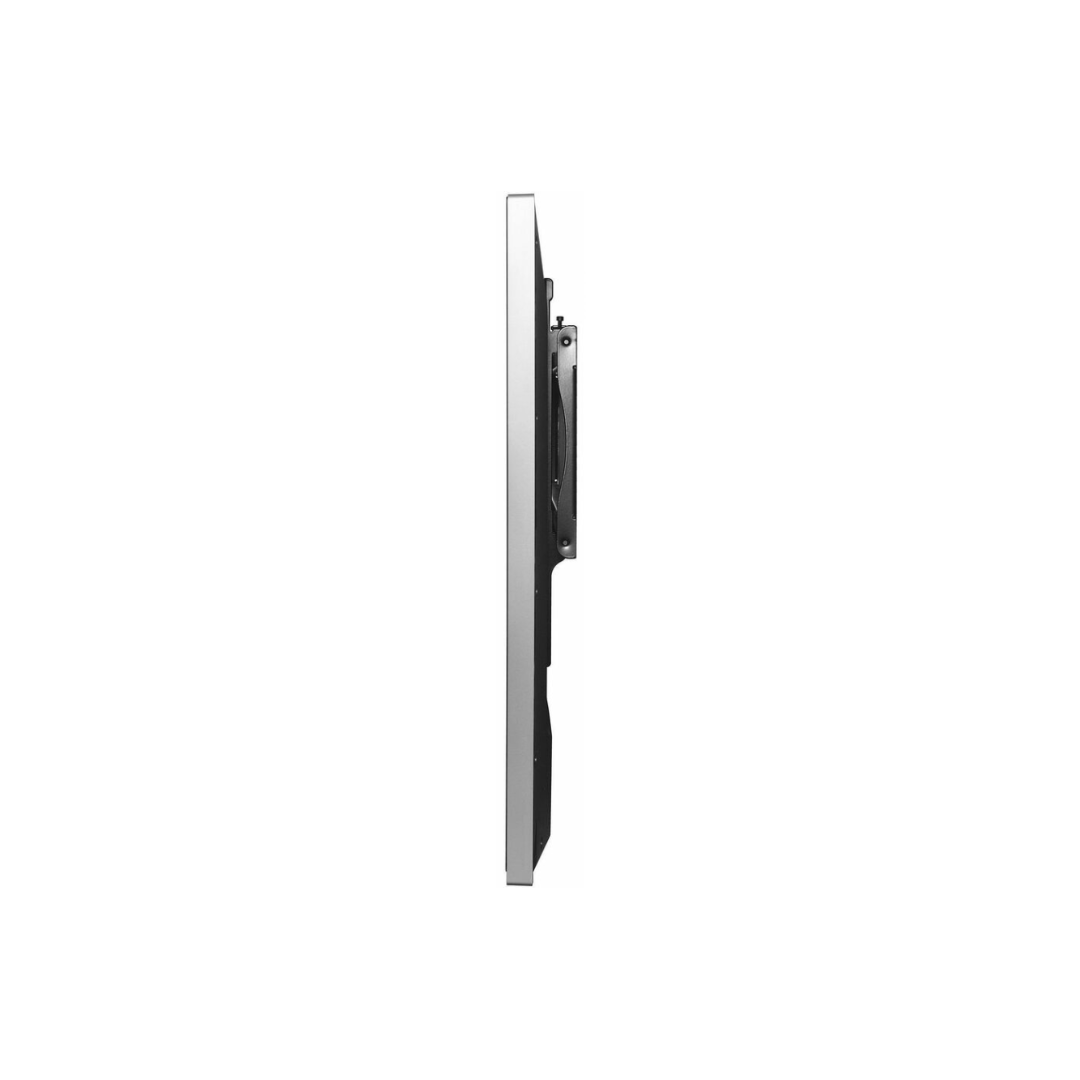

- Low-profile design holds display only 1.20" (30mm) from the wall
- Up to 0.25" (6mm) of vertical adjustment on each universal display adaptor bracket for post-installation levelling and height adjustment fine-tuning
- Horizontal display adjustment up to 8.00"(203mm) for centring display on wall
- Includes all necessary wall and display attachment hardware
- Integrated security options available
- Design is UL listed and tested to four times stated load capacity
- For mounts requiring theft resistant hardware, installed with security tool(included), please purchase SF660
- For mounts requiring standard hardware, installed with a Philips screw driver, please purchase SF660P
Technical Specifications
| Product Information | |
| Device Supported | Display |
| Maximum Load Capacity | 90.72 kg |
| Minimum Screen Size Supported | 39" (99.06 cm) |
| Maximum Screen Size Supported | 80" (203.20 cm) |
| Features | Vertical Adjustment |
| Horizontal Adjustment | |
| Hook-and-Hang Design | |
| Mount Pattern | Universal |
| Mount Profile | Low Profile |
| Height Adjustable | Yes |
| Mount Function | Adjustable |
| Wall Mount | |
| Mount Surface | Wall |
| Durability | Scratch Resistant |
| Theft Resistant | |
| Tamper Resistant | |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Finishing | Powder Coated |
| Fused Epoxy | |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 200 x 100 |
| 200 x 200 | |
| 300 x 200 | |
| 300 x 300 | |
| 400 x 200 | |
| 400 x 300 | |
| 400 x 400 | |
| 600 x 400 | |
| 800 x 400 | |
| Form Factor | Wall Mountable |
| Height | 42.90 cm (16.89") |
| Width | 86.66 cm (34.12") |
| Depth | 3.05 cm (1.20") |
| Weight (Approximate) | 2.54 kg |
| Miscellaneous | |
| Package Contents | Universal Flat Wall Mount for 39" to 80" Displays |
| Wall and Display Installation Hardware | |
| Installation Instructions | |
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL, OSHPD |
| Manufacturer Product Class | Flat |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
