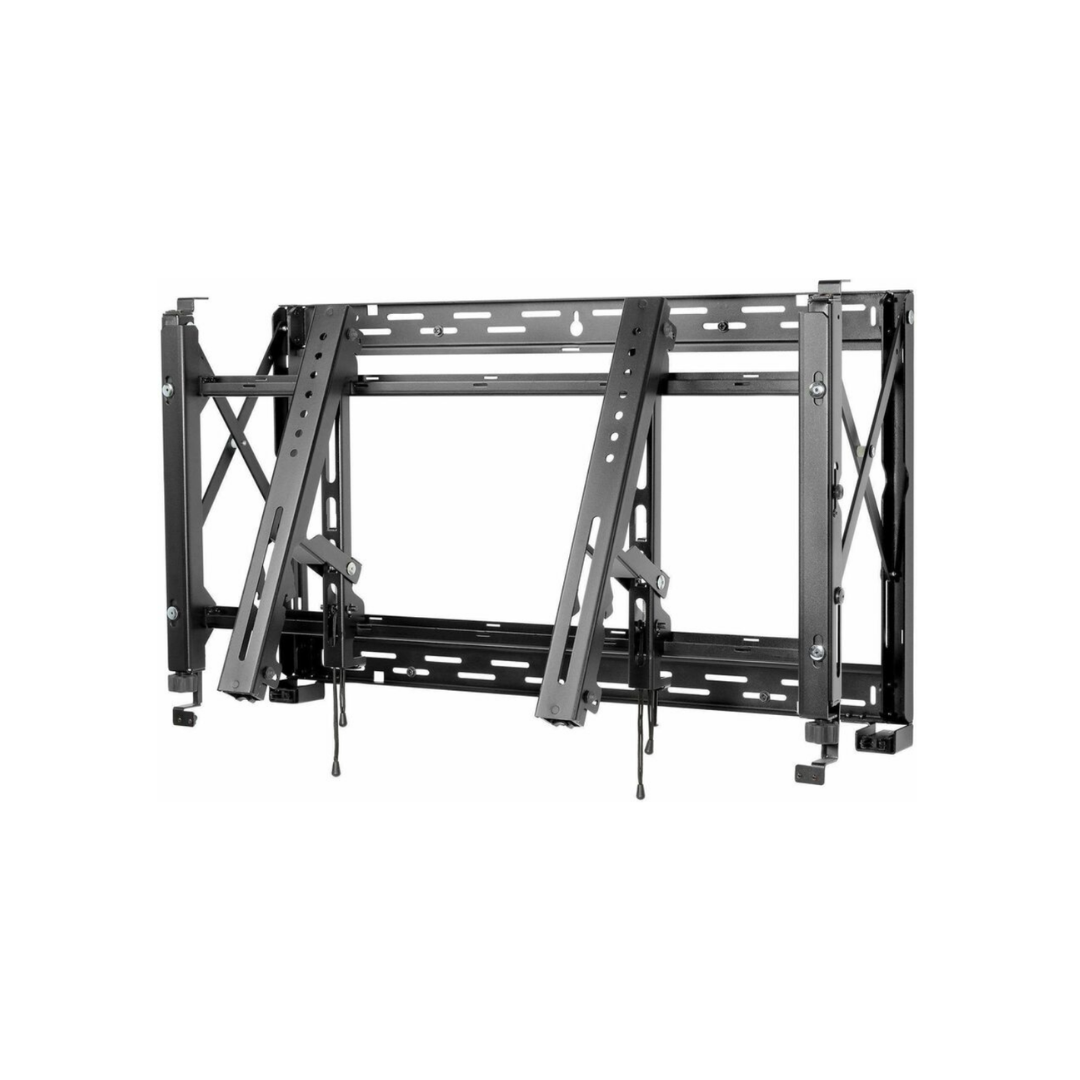

Peerless-AV SmartMount Full-Service Video Wall Mount with Quick Release - Landscape For 46" to 65" Displays
Video walls should be easy to configure, quick to install, and a snap to maintain. The SmartMount® Full-Service Video Wall Mount with a Quick Release is designed for quick service access in recessed video wall applications. This mount provides versatility demanded by installers. With quick release functionality, users have the ability to articulate the display from the wall by gently pressing on the front of the display. The DS-VW765-LQR offers tool-less micro-adjustment and provides easy-access to any display. The custom wall plate spacers eliminate guesswork and on-site installation calculations, reducing installation time and cost.
This display size range is simply a guideline for product selection. Displays larger than the screen size range may still be compatible as long as they fall within the VESA® pattern and max weight of the Peerless-AV® product.
Product Features
- Quick release can be disabled with a locking screw to prevent unintentional pop-outs

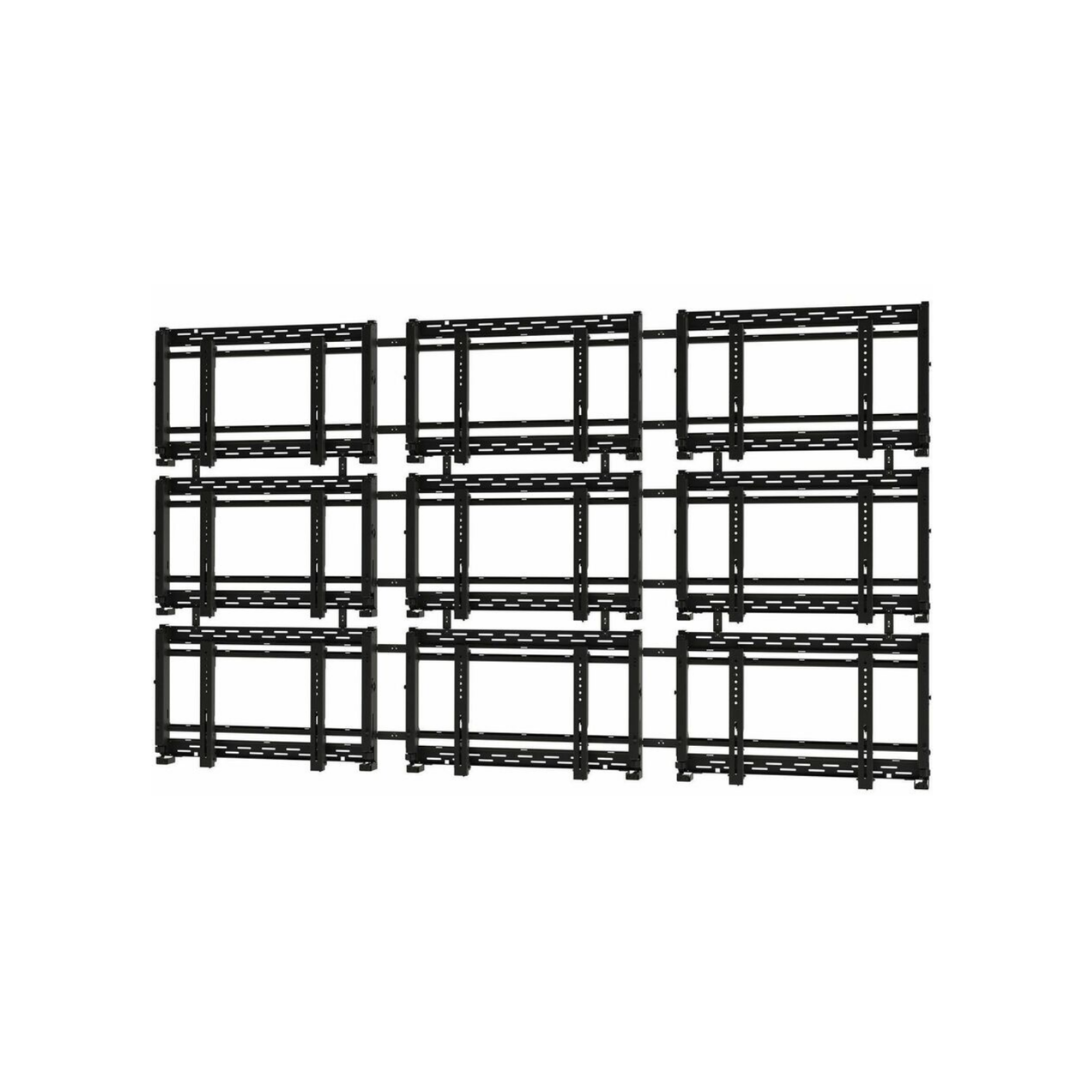

- Modular mount for unlimited video wall display configurations
- Pull-out/prop-open mechanism provides quick service access
- Integrated cable management tie-backs make display-to-display cabling simple
Technical Specifications
| Product Information | |
| Device Supported | Video Wall Display |
| Maximum Load Capacity | 56.70 kg |
| Minimum Screen Size Supported | 46" (116.84 cm) |
| Maximum Screen Size Supported | 65" (165.10 cm) |
| Minimum Adjustable Depth | 7.62 cm (3") |
| Maximum Adjustable Depth | 9.65 cm (3.80") |
| Features |
Quick Release Mechanism Cable Management Adjustable Depth Articulating Tool-less Micro-Adjustment Easy to Install Lockable 3-axis |
| Orientation | Landscape |
| Mount Profile | Recessed |
| Mount Function | Video Wall |
| Mount Surface | Wall |
| Physical Characteristics | |
| Colour Family | Black |
| Product Colour | Black |
| Finishing | Textured |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 200 x 200 up to 700 x 400 mm |
| Form Factor | Wall Mountable |
| Height | 54.28 cm (21.37") |
| Width | 90.40 cm (35.59") |
| Depth | 9.73 cm (3.83") |
| Weight (Approximate) | 14.79 kg |
| Miscellaneous | |
| Package Contents |
Full-Service Video Wall Mount with Quick Release - Landscape for 46" to 65" Displays Wall Plate Alignment Spacers Media Player Mounting Bracket Dedicated Adaptor Plates |
| Indoor/Outdoor | Indoor |
| Certifications & Standards | RoHS, TAA, VESA, UL |
| Manufacturer Product Class | Wall, Quick Release Pop-out |
| Assembly Required | Yes |
| TAA Compliant | Yes |
| UL Listed | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
