Samsung 46" Professional Outdoor Signage OHDX

Deliver bright and brilliant messages, built for the outdoors

Brightness level of 3,500 nits delivers 24/7 performance in any light
IP56-rated protection and dustproof design
Auto-Brightness Sensor enables efficient operation
2nd Glass installable Structure

Technical Specifications

Display
Diagonal Size	46"
Panel Type	VA
Resolution	1,920 x 1,080
Pixel Pitch (HxV)	0.53 x 0.53
Brightness (Typ)	3,500 (Peak 4,000 )
Contrast Ratio	6,000:1
Viewing Angle (Horizontal/Vertical)	178/178
Response Time	6ms
Colour Gamut	72 %
Glass Haze	0 %
H-Scanning Frequency	15~135kHz(HDMI)
Maximum Pixel Frequency	594MHz(HDMI)
V-Scanning Frequency	24~75Hz(HDMI)
Contrast Ratio (Dynamic)	Mega
Operation Time Support	24/7

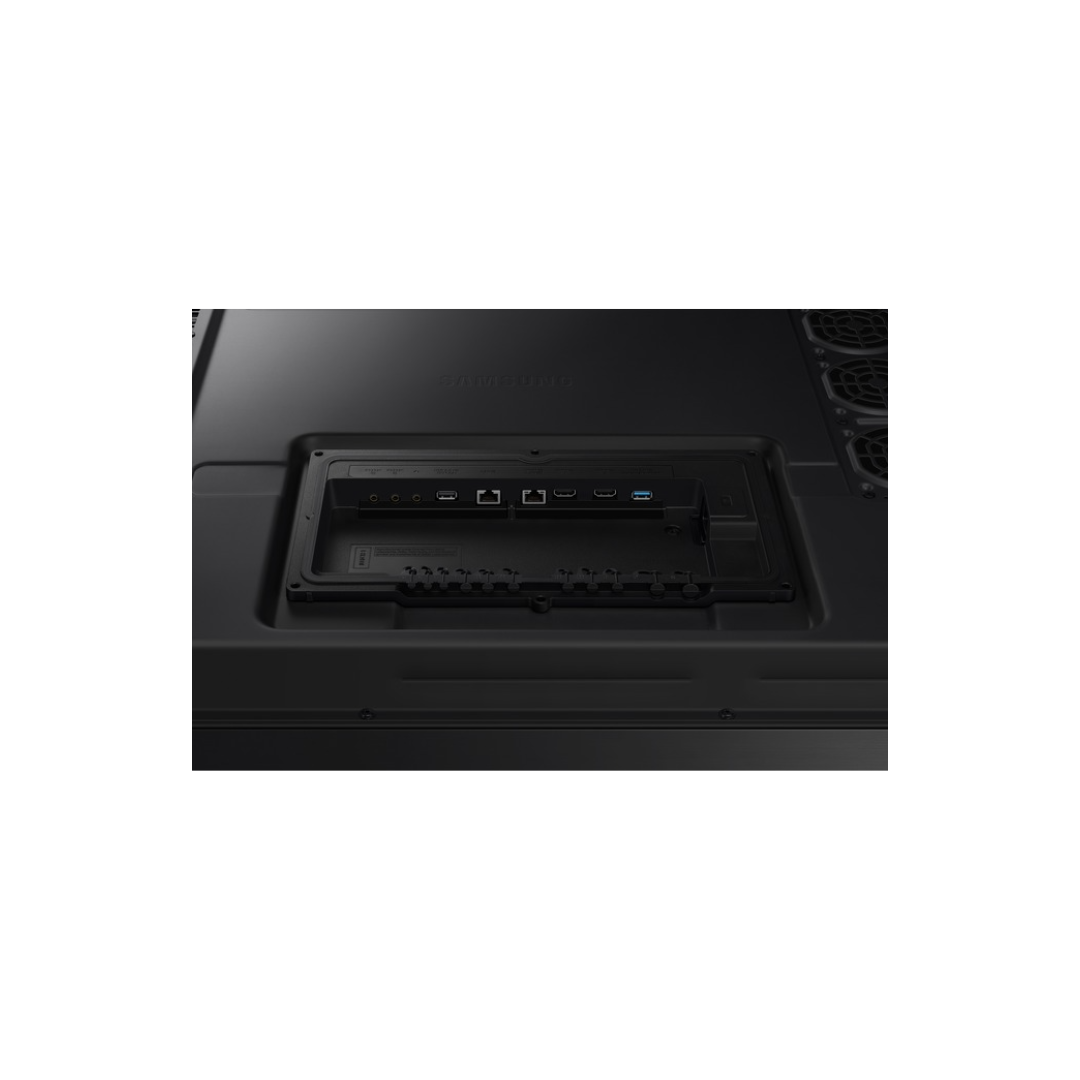

Connectivity
HDMI In	2
Version of HDMI	2
Version of HDCP	2.2
USB	2
HDBaseT In	Yes
Audio Out	Stereo Mini Jack
Video Out	No
RS232 In	Yes
RS232 Out	Yes
RJ45 In	Yes
RJ45 Out	Yes
WiFi	Yes (External)
Bluetooth	Yes (External)
Power
Power Supply	AC100-240V 50/60Hz
Power Consumption (On Mode)	480 W
Power Consumption (Sleep Mode)	0.5 W
Dimension
Set Dimension (WxHxD)	1069.0 x 623.6 x 69.0 mm
Package Dimension (WxHxD)	1190 x 735 x 186 mm
Weight
Set Weight	28.2 kg
Package Weight	33.7 kg
Operation Conditions
Temperature	-30℃~ 50℃
Humidity	10 ~ 80%, non-condensing
Mechanical Specification
VESA Mount	995 x 500 mm
Bezel Width	24.9mm (T/B/L/R)
Bezel Color	Slate Black
Glass Thickness	3T
Glass Film	AG, AR/IR, SRF
SoC
OS Version	Tizen 8.0
Flash Memory Size	8GB
Certification and Compliance
EMC	Class A
Safety	60950-1, 62368-1
