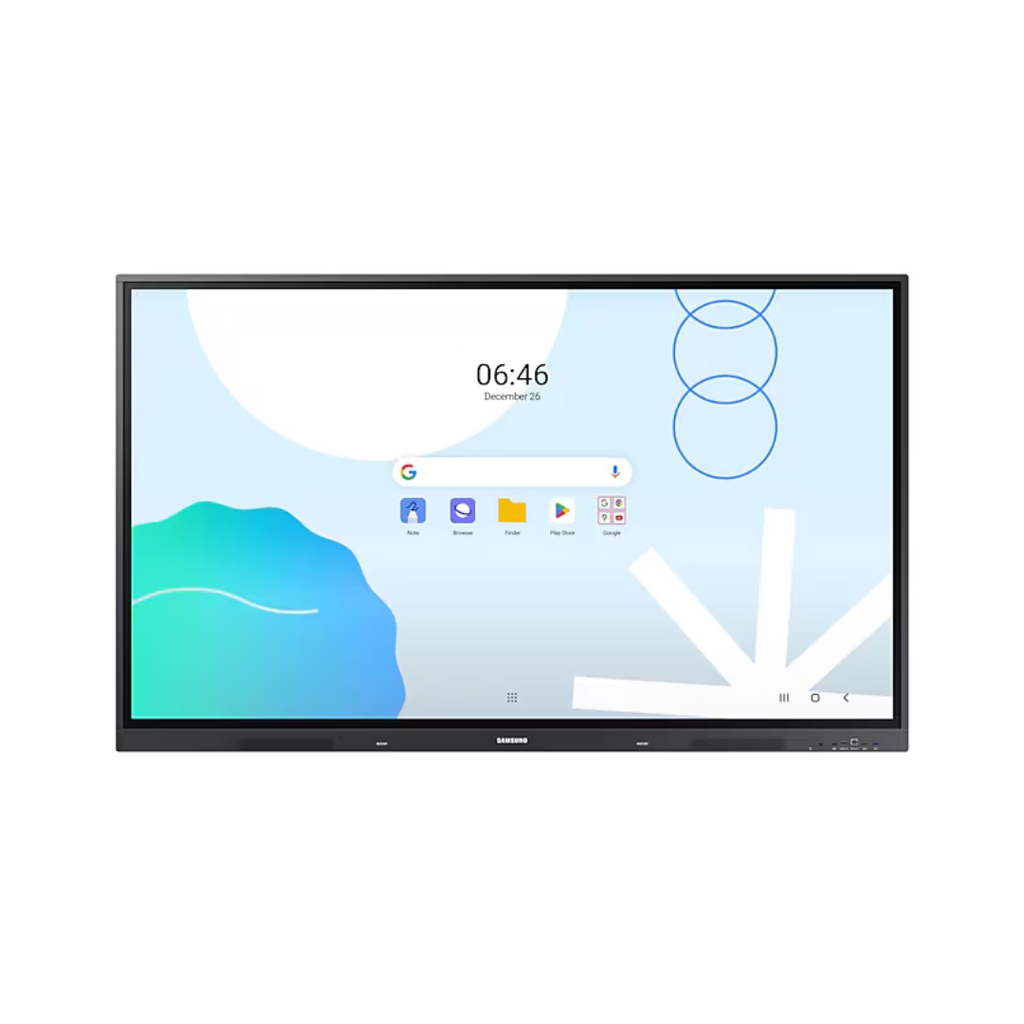

Samsung 75" WA75D Interactive E-board Display (Android) - LH75WADWLGCXEN - New
Samsung 75" Interactive E-board (Android) WA75D
The WAD series offers familiarity to its users. It's compatible with other Android devices and provides a variety of widgets and an easily customisable home screen. These features create more flexibility in building an environment that suits various learning needs.
With an EDLA certification, the WAD series supports a variety of Google services like Google Play and YouTube. This access to major educational apps like Google Classroom leads to increased efficiency and enhanced communication with students.
- Samsung interactive display WAD series offers a dynamic, engaging experience designed for the classroom of the future.
- A variety of screen mode options, including split screen mode and multi-window mode, enables users to easily present and multitask.
- Up to nine screens can be shared simultaneously for maximum productivity in real time, ensuring every student is included.
Product Specifications
| Display | |
| Diagonal Size | 75" |
| Panel Type | ADS |
| Resolution | 3,840 x 2,160 |
| Pixel Pitch (HxV) | 429.6(H)×429.6(V) |
| Brightness (Typ) | 400 nit |
| Contrast Ratio | 1,200:1 |
| Viewing Angle (H/V) | 178/178 |
| Response Time | 8ms |
| Colour Gamut | 72% |
| Glass Haze | 25% |
| H-Scanning Frequency | 135Khz |
| Maximum Pixel Frequency | 78MHz |
| V-Scanning Frequency | 60Hz |
| Operation Time Support | 12/7 |
| Connectivity | |
| HDMI In | 3 |
| Version of HDMI | 2 |
| Version of HDCP | 2.1 |
| USB | 5 (2.0 X1, 3.0X4) |
| IR In | Yes |
| Audio In | Stereo Mini Jack |
| Audio Out | Stereo Mini Jack |
| Video Out | Yes |
| RS232 In | Yes |
| RS232 Out | Yes |
| RJ45 In | Yes |
| RJ45 Out | Yes |
| WiFi | Yes |
| Bluetooth | Yes |
| Power | |
| Power Supply | AC100-240V 50/60Hz |
| Power Consumption (On Mode) | 385W |
| Power Consumption (Sleep Mode) | 0.5W↓ |
| Dimension | |
| Set Dimension (WxHxD) | 1709 x 1020 x 88 mm |
| Package Dimension (WxHxD) | 1863 x 1140 x 225 mm |
| Weight | |
| Set Weight with Stand | 45.5 kg |
| Package Weight | 57.6 kg |
| Operation Conditions | |
| Temperature | 0℃~40℃ |
| Humidity | 10 ~ 90% |
| Mechanical Specification | |
| VESA Mount | 800 x 400 mm |
| Bezel Width | 16.4mm(U), 16.4mm(L/R), 44.9mm(B) |
| Bezel Color | Space Gray |
| Frame Material | Non-Glossy |
| Optional Feature | |
| Touch | Yes |
| SoC | |
| OS Version | Android-13 |
| Flash Memory Size | 64GB |
| Touch | |
| Touch Technology | IR |
| Certification and Compliance | |
| EMC | Part 15, Subpart B Class A KS C9832, KS C9835 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 ?? ? ? ? ? ? EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 ?? ? ? ? ? ? EN 61000-3-3:2013/A1:2019/A2:2021 EN 61000-3-2:2019/A1:2021 ?? ? ? ? ? ? EN 61000-3-3:2013/A1:2019/A2:2021 EN 55035:2017/A11:2020 EN 61000-3-2:2019/A1:2021 ?? ? ? ? ? ? EN 61000-3-3:2013/A1:2019/A2:2021 J55032 , VCCI-CISPR32 JIS C61000-3-2 GB9254-2021 GB17625.1-2012 CNS13438 (ITE EMI) Class A /? AS/NZS? CISPR 32 EN55032:2015/A11:2020/A1:2020,EN 55035:2017/A11:2020 |
| Safety | IEC 62368-1 Edtion 3&IEC 60950-1 UL62368-1 edition 3 GB4943.1-2022 PSB+ IEC 62368-1 NOM-019 K 62368 IRAM+ IEC 62368-1 EAC+ IEC 62368-1 INMETRO+ IEC 62368-1 SASO+ IEC 62368-1 BSMI+ IEC 62368-1 IEC 62368-1/AS/NZS 62368-1 IEC60950-1 / IS13252 |
