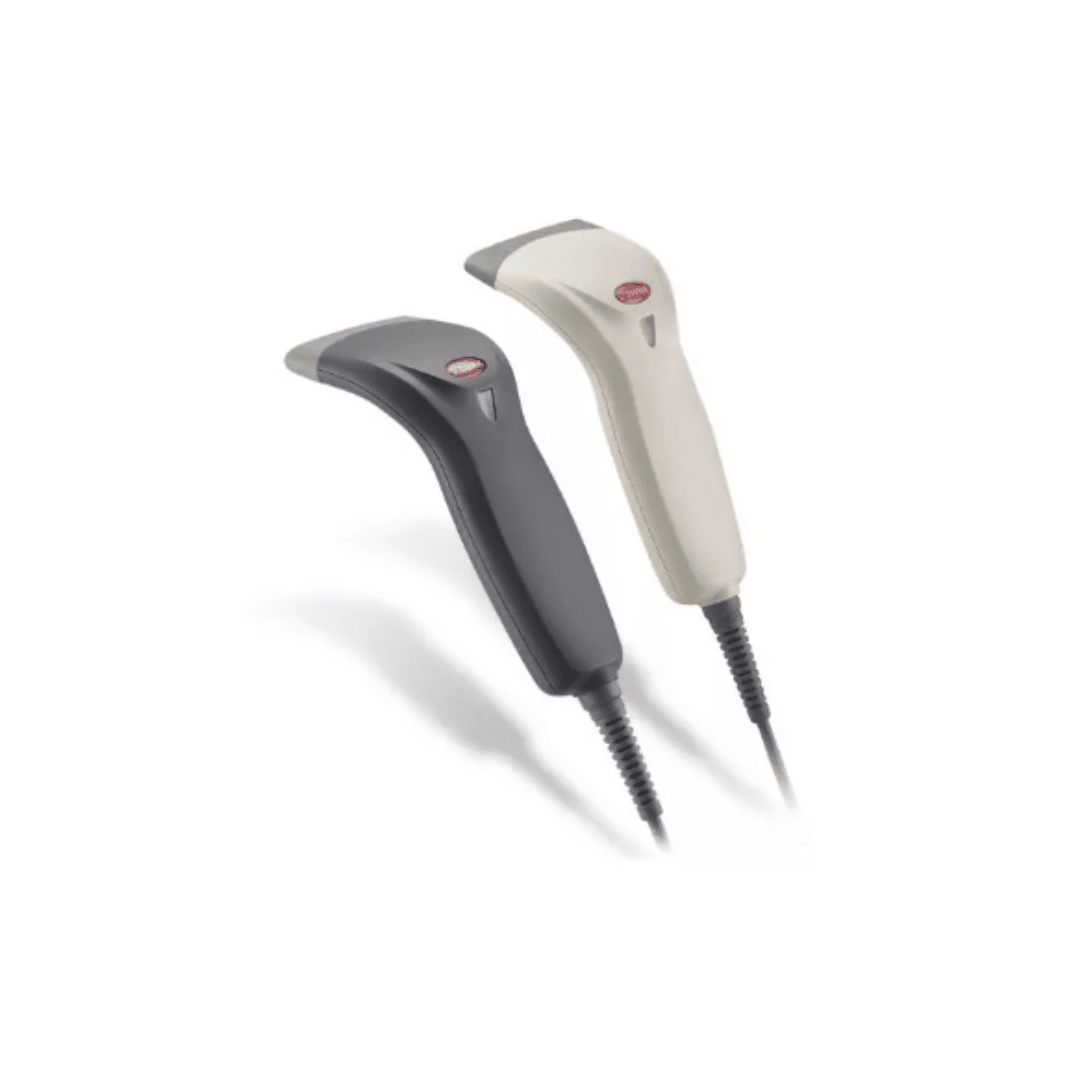

Zebex Z-3220 Handheld Scanner USB

The sleek Z-3220 delivers outstanding scanning performance at a competitive price. Specially designed for first time users, the scanner is ergonomically shaped and employs a field replaceable cable allowing for fast and easy disconnection from the host.
With its newly improved decoding capability, the scanner provides an exceptional first-read-rate, making it ideal for retail applications.

• Proprietary Ultrascan decoding technology
• Light and rugged design
• Advanced image capture technology
• Multi-interface communication
• Ideal for beginners
• Captures barcodes on mobile phone, tablet, or computer screens

Z-3220 Handheld Linear Image Scanner Black housing with USB cable.

OPERATIONAL
Light Source                625 nm visible LED
Optical System            2,500 pixel linear sensor
Microprocessor           32 bit
Depth of Field             3 mil: 0 mm
4 mil: 0 – 40 mm
5 mil: 0 – 45 mm
7.5 mil: 0 – 50 mm
10 mil: 0 – 60 mm
13 mil: 0 – 75 mm
20 mil: 0 – 90 mm
Scan Rate                  150 scans per second
Print Contrast             25% @ UPC/EAN,100%
Indicator                     Two-colors LED
Beeper Operation       Programmable tone & beep time
System Interface        Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS

PHYSICAL
Dimension                 161.5 × 72.5 × 55.2 mm (device only)
Weight                       100 g (device only)
Cable Standard         2M straight

POWER
Input Voltage             5 VDC ±5%
Standby Current        55 mA typical
Operating Current     90 mA (AVG), 150 mA (max.)

DECODING CAPABILITY
1D Barcode               UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13,
ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93,
ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32,
Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar,
GS1 DataBar Limited, GS1 DataBar Expanded, Telepe
